Accelerate your design innovations with SIMULIAworks on the 3DEXPERIENCE platform

call
Anoop Bagalkot, Sr. Technical Consultant Simulation (FEA &CFD) Nov 13th, 2020

SIMULIAworks is a portfolio of connected powerful and collaborative simulation solutions on the cloud-based 3DEXPERIENCE® platform. It empowers you to accelerate design innovation by solving engineering challenges for your SOLIDWORKS® 3D designs with full data associativity.

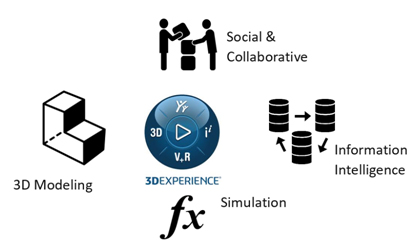

3DEXPERIENCE platform

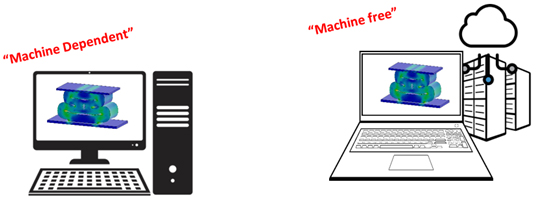

Being part of the cloud-based 3DEXPERIENCE WORKS portfolio means any engineer can easily access advanced simulation without the need for expensive hardware. An added benefit is faster product delivery, thanks to real-time collaboration and data sharing capabilities.

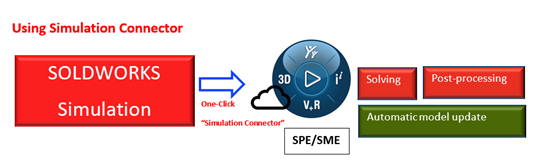

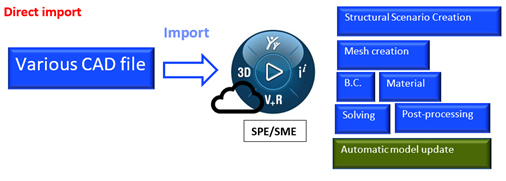

Easy to use, Automatic model transfer, Automatic model update

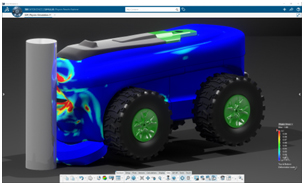

Leveraging the power of 3DEXPERIENCE and Abaqus, from SOLIDWORKS now you can add to your current structural simulation capabilities

  • Wider range of element types and material models
  • Hexahedral meshing for solids, quadrilateral meshing for shells
  • Reliably solve simulations with combinations of nonlinearities
  • Simple and robust contact setup and solution using General Contact
  • Multi-step simulation sequences
  • Improved run times for large highly nonlinear simulations
  • Execution on cloud along with flexibility of expanding with cloud
  • Easily share data and knowledge — collaboration

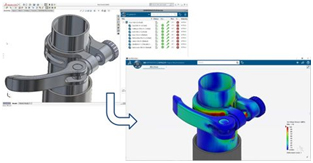

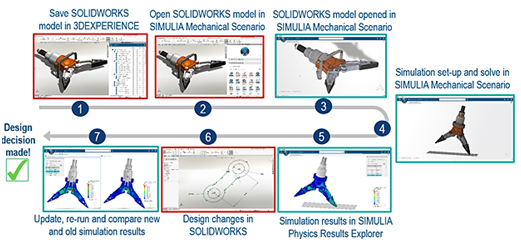

Integrated Simulation Workflow

Structural Designer Role on the cloud-based 3DEXPERIENCE® platform delivers linear static, natural frequency, buckling and steady state thermal simulation capabilities for fast and efficient product testing experience.

Get the following Apps with this role:

  • Linear Structural Validation
  • Material Definition

Structural Performance Engineer enables you to conduct structural static, frequency, buckling, modal dynamic response, and structural thermal simulation of parts and assemblies on the cloud-based 3DEXPERIENCE® platform.

Get the following Apps with this role:

  • Material Definition
  • Mesh Creation
  • Model Assembly Design
  • Physics Methods Reuse
  • Physics Results Explorer
  • Structural Model Creation
  • Structural Scenario Creation

Structural Mechanics Engineer on the cloud-based 3DEXPERIENCE® platform enables you to conduct structural linear and nonlinear static, low and high-speed dynamic and thermal simulation of product behavior. Its material calibration capabilities help ensure accurate material behavior modeling.

Get the following Apps with this role:

  • Assembly Design
  • Material Calibration
  • Material Definition
  • Mechanical Scenario Creation
  • Mesh Creation
  • Model Assembly Design
  • Physics Methods Reuse
  • Physics Results Explorer
  • Quality Rules Reuse
  • Simulation Model Preparation
  • Structural Model Creation

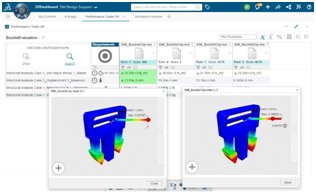

Simulation Collaborator enables any collaborator and manager who needs to review and compare simulations in real time from anywhere to make faster design decisions.

Get the following Apps with this role:

  • Performance Trade-off
  • Physics Simulation Review
